SD DTH Hammer Bit
Suitable shank: SD shank
Application:Water well drilling, domestic borehole drilling, construction, mining
"SD" is a special shank design. Gdrills provide various bit face design choice include flat face, concave face, convex face, drop center, and double-sided face, which is to meet different needs of rock formations.

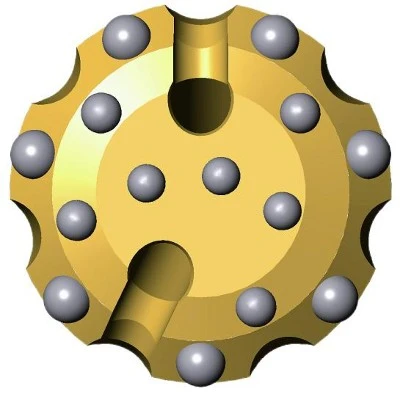

DTH Bit Face Design
|
Item |
Bit Face Picture |
Descriptions |
|
Flat face |
|
It's a flat face with a uniform surface. Suitable for soft to medium rock formations. Advantage on precision drilling. |
|
Convex face |
|
It's curved outward design with slightly convex. Suitable for formations where the rock is abrasive or extremely hard. Advantage on large-scale mining or construction. |
|
Concave face |
|
It's curved inward with slightly concave. Suitable for where ROP ( rate of penetration) is required. Advantage on drilling efficiency |
|
Drop center |
|
It features a depressed center with the surrounding area of the face raised. Advantages on fast penetration, especially in softer rock formations |
|
Double-sided button face |
|
It features tungsten carbide buttons arranged on both sided of the bit face, often with a slightly concave center. Advantages on improved penetration rates in tough, hard rock formations. |
Warranty Procedures
Any warranty claim must be submitted in writing to Gdrills within 280 days from the date of shipment. Resolution of Claim Warranty claims will be resolved under the following conditions:
1. Documentation Requirements:
Detailed photos or videos must be provided to Gdrills, along with the purchase date and the information specified in Section 2 below. Claimants are required to retain the products in question until Gdrills has fully resolved the claim. Gdrills reserves the right to request the return of the products if the provided photos or videos are insufficient to determine the validity of the claim.
2. Claim Details:
The claimant must provide Gdrills with a detailed description of the issue, including:
The footage drilled by the product.
Air pressure used during operation.
Rock formation and drilling location.
For drill bits: the diameter over the gauge row and the width across the flats on the gauge row buttons. Additional relevant information that may assist in analyzing the claim is also requested.
3. Claim Approval and Compensation
Once a claim is approved by Gdrills, compensation will be provided in one of the following forms:
Replacement with new products.
Provision of specific spare parts.
A credit of up to the maximum amount paid by the claimant to Gdrills for the product. Gdrills retains the final authority to determine the type and amount of compensation to be issued.
Hot Tags: sd dth hammer bit, China sd dth hammer bit manufacturers, suppliers, factory, Mission Down Hole Hammer Bits, dth bits, dth hammer bit price, QL DTH Bits, BR DTH Button Bit, down to hole drilling
Specifications
SD4 DTH Hammer Bits
| Face | Diameter | Part No. | T.C Buttons(mm) | Angle | Flushing Holes Dia.(mm) | Weight(kg) | ||||
| Gauge | Front | |||||||||
| mm | inch | Flat | Convex | Concave | ||||||
| Convex | 115 | 4.53 | GSD4-115CV71 | 7×14 | 2×14 | 4×14 | / | 38° | 2×18 | 9.0 |
| Convex | 115 | 4.53 | GSD4-115CV72 | 7×16 | 2×14 | 4×14 | / | 38° | 2×18 | 9.0 |
| Convex | 115 | 4.53 | GSD4-115CV8 | 8×16 | 2×14 | 4×14 | / | 38° | 2×18 | 9.0 |
| Convex | 125 | 4.92 | GSD3-125CV8 | 8×14 | 3×14 | 4×14 | / | 38° | 2×18 | 9.6 |
| Flat | 127 | 5 | GSD4-127FF8 | 8×14 | 7×13 | / | / | 38° | 2×18 | 9.7 |
| Flat | 130 | 5.12 | GSD4-130FF8 | 8×14 | 7×14 | / | / | 38° | 2×18 | 9.9 |
SD5 DTH Hammer Bits
| Face | Diameter | Part No. | T.C Buttons(mm) | Angle | Flushing Holes Dia.(mm) | Weight(kg) | ||||
| Gauge | Front | |||||||||
| mm | inch | Flat | Convex | Concave | ||||||
| Convex | 140 | 5.51 | GSD5-140CV7 | 7×18 | 3×14 | 4×15 | / | 38° | 2×20 | 14.6 |
| Flat | 140 | 5.51 | GSD5-140FF8 | 8×16 | 8×14 | / | / | 38° | 2×20 | 14.8 |
| Flat | 146 | 5.75 | GSD5-146FF8 | 8×18 | 8×15 | / | / | 38° | 2×20 | 15.4 |
| Concave | 146 | 5.75 | GSD5-146CC8 | 8×18 | 4×15 | / | 3×14 | 38° | 2×20 | 15.3 |
| Flat | 152 | 5.98 | GSD5-152FF8 | 8×18 | 8×15 | / | / | 38° | 2×20 | 15.9 |
| Concave | 152 | 5.98 | GSD5-152CC8 | 8×18 | 4×16 | / | 4×14 | 38° | 2×20 | 15.7 |
SD6 DTH Hammer Bits
| Face | Diameter | Part No. | T.C Buttons(mm) | Angle | Flushing Holes Dia.(mm) | Weight(kg) | ||||
| Gauge | Front | |||||||||
| mm | inch | Flat | Convex | Concave | ||||||
| Flat | 165 | 6.5 | GSD6-165FF8 | 8×18 | 8×16 | / | / | 38° | 2×26 | 26.3 |
| Convex | 165 | 6.5 | GSD6-165CV8 | 8×16 | 4×16 | 4×16 | / | 38° | 2×26 | 26.1 |
| Concave | 165 | 6.5 | GSD6-165CC8 | 8×18 | 4×16 | / | 4×15 | 38° | 2×26 | 25.8 |
| Concave | 171 | 6.73 | GSD6-171CC8 | 8×18 | 6×16 | / | 4×16 | 38° | 2×26 | 26.5 |
| Concave | 178 | 7.01 | GSD6-178CC8 | 8×18 | 6×16 | / | 4×16 | 38° | 2×26 | 27.1 |
| Concave | 190 | 7.48 | GSD6-190CC10 | 10×18 | 8×16 | / | 5×16 | 38° | 2×26 | 28.6 |
SD8 DTH Hammer Bits
| Face | Diameter | Part No. | T.C Buttons(mm) | Angle | Flushing Holes Dia.(mm) | Weight(kg) | ||||
| Gauge | Front | |||||||||
| mm | inch | Flat | Convex | Concave | ||||||
| Concave | 203 | 7.99 | GSD8-203CC10 | 10×18 | 8×18 | / | 5×16 | 38° | 2×30 | 40.1 |
| Concave | 216 | 8.5 | GSD8-216CC10 | 10×18 | 8×18 | / | 6×16 | 38° | 2×30 | 44.3 |
| Concave | 219 | 8.62 | GSD8-219CC10 | 10×18 | 8×18 | / | 6×16 | 38° | 2×30 | 44.8 |
| Concave | 229 | 9.02 | GSD8-229CC12 | 12×18 | 12×16 | / | 7×16 | 38° | 2×30 | 46.4 |
| Concave | 235 | 9.25 | GSD8-235CC12 | 12×18 | 12×16 | / | 7×16 | 38° | 2×30 | 47.4 |
| Concave | 245 | 9.65 | GSD8-245CC12 | 12×19 | 12×16 | / | 8×16 | 38° | 2×30 | 51.5 |
SD10 DTH Hammer Bits
| Face | Diameter | Part No. | T.C Buttons(mm) | Angle | Flushing Holes Dia.(mm) | Weight(kg) | ||||
| Gauge | Front | |||||||||
| mm | inch | Flat | Convex | Concave | ||||||
| Concave | 254 | 9.65 | GSD10-254CC12 | 12×19 | 12×16 | 8×18 | 6×16 | 38° | 2×30 | 82.1 |
| Concave | 275 | 10.83 | GSD10-275CC12 | 12×19 | 12×16 | 8×18 | 8×16 | 38° | 2×30 | 86.2 |
| Concave | 305 | 12.01 | GSD10-305CC12 | 15×19 | 15×18 | 12×18 | 9×16 | 38° | 3×26 | 98.7 |
SD12 DTH Hammer Bits
| Face | Diameter | Part No. | T.C Buttons(mm) | Angle | Flushing Holes Dia.(mm) | Weight(kg) | ||||
| Gauge | Front | |||||||||
| mm | inch | Flat | Convex | Concave | ||||||
| Concave | 305 | 12.01 | GSD12-305CC27 | 27×18 | 15×18 | / | 11×16 | 38° | 3×35 | 105.0 |
| Concave | 315 | 12.4 | GSD12-315CC27 | 27×18 | 15×18 | / | 12×16 | 38° | 3×35 | 129.0 |
| Concave | 325 | 12.8 | GSD12-325CC27 | 27×18 | 15×18 | / | 15×16 | 38° | 3×35 | 132.0 |
| Concave | 350 | 13.78 | GSD12-350CC27 | 27×18 | 24×18 | / | 12×16 | 38° | 3×35 | 151.0 |
