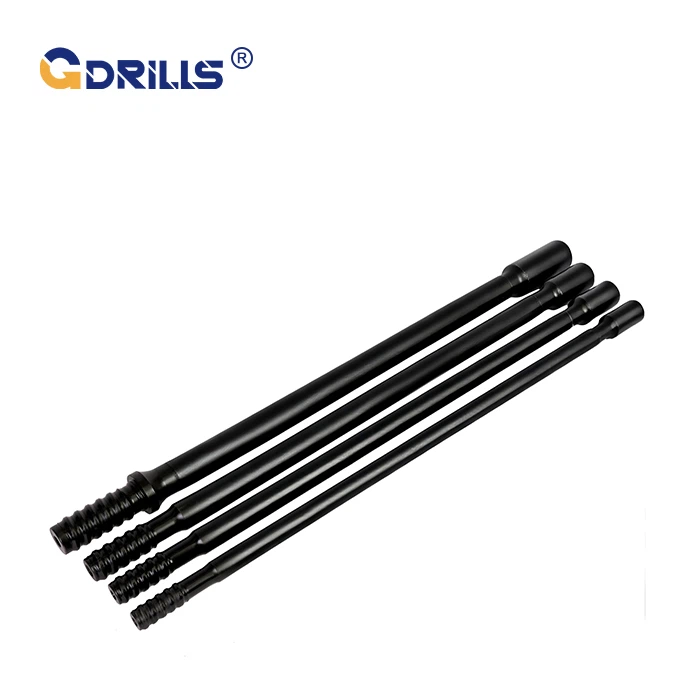

T45 Guide Rod

The Mechanics of Alignment: How Gdrills T45 Guide Rods Maximize Hole Straightness

In long-hole benching and underground production drilling, hole deviation is your most expensive invisible enemy. When standard drill rods travel past 15 meters, geological faults and high rig feed pressures inevitably force the bit off-course, leading to poor fragmentation, dangerous toe formation, and wasted explosives.

Gdrills T45 Guide Tubes are scientifically engineered to solve this mechanical vulnerability. Positioned right behind the bit, the enlarged, rigid outer diameter of the guide tube acts as a continuous tracking mechanism. By minimizing the annular gap between the drilling string and the borehole wall, it completely restricts the bit from deflecting sideways, ensuring maximum hole straightness even in heavily fractured or non-homogeneous formations.

Heavy-Wall Engineering for Extreme Flexural Rigidity Why do generic guide tubes still fail and bend? Because their wall profiles are too thin to survive the high-frequency compressive shock waves of powerful hydraulic drifters.

The Rigidity Matrix: Gdrills utilizes proprietary premium micro-alloy steel with a wall thickness up to 10mm. This thick-walled configuration drastically increases the rod's bending resistance (flexural rigidity).

Resisting High Feed Forces: The reinforced body ensures that the kinetic energy from your rig is projected entirely forward into the rock face rather than buckling the steel string laterally, significantly boosting your penetration rates.

Precision-Tempered T45 Threads with High Torque Capacity Under severe deep-hole friction, thread binding and torsional shearing are major risks. Our T45 thread connections are CNC-milled and subjected to deep-case induction hardening:

High Torque Handling: With a certified working torque rating of up to 2,800 Nm, Gdrills T45 guide rods comfortably handle the aggressive rotation profiles of standard Sandvik or Epiroc drifters.

Anti-Galling Profiles: The specialized thread clearance allows for seamless coupling and rapid uncoupling, eliminating thread "freezing" under intense subterranean geothermal and mechanical heat.

Note: Custom lengths and specialized wall thicknesses can be manufactured to match your mine's rock drift configuration.

Maximize Hole Straightness: Engineered with an enlarged outer diameter that functions as an integrated stabilizer, filling the borehole clearance to eliminate structural bending and deviation in deep holes.

Heavy-Wall High-Rigidity Body: Utilizing ultra-thick premium alloy steel tubing that provides a massive cross-sectional moment of inertia, successfully resisting high feed forces without flexing.

High Torque Capacity T45 Threads: Precision-machined to absorb heavy rotational torque spikes from modern hydraulic drifters, guaranteeing 100% thread joint integrity deep inside the hole.

Optimized Flushing & Evacuation: Designed with streamlined wear-ribs/grooves to allow high-speed air/water flushing, preventing sludge packing and lowering rotational friction.

1. Customizable rock drilling tool solutions. Gdrills provides tailored solutions to meet specific customer needs, including various guiding tube lengths, diameters and designs.
2. Industry expertise. With extensive experience in the drilling tools industry, Gdrills offers products designed for optimal performance in mining, tunneling, and construction projects. Gdrills owns an established presence in the drilling tool market in Russia, middle east countries, and Africa, with a track record of providing reliable solutions to customers.
3. Strong after sales support. Guizhou Gold Drills Equipment Co,ltd provides exceptional customer service, including technical guidance and quick response to client inquires. Their commitment to customer satisfaction ensures long-term partnerships.
4. Global reach. Gdrills are able to supply rock tools, drilling equipment, and other drilling accessories to international markets with adherence to international standards and certifications, which ensures their global competitiveness.

"Straight Holes Mean 15% Lower Total Blasting Costs" "When your holes are perfectly straight, your explosives distribute evenly. This means no oversized boulders, zero secondary breaking costs, and less wear on your underground loaders. Investing in Gdrills heavy-wall T45 guide rods isn't just buying steel-it's optimizing your entire quarry's extraction ROI. Contact our engineering desk today for a bulk sample quote."
